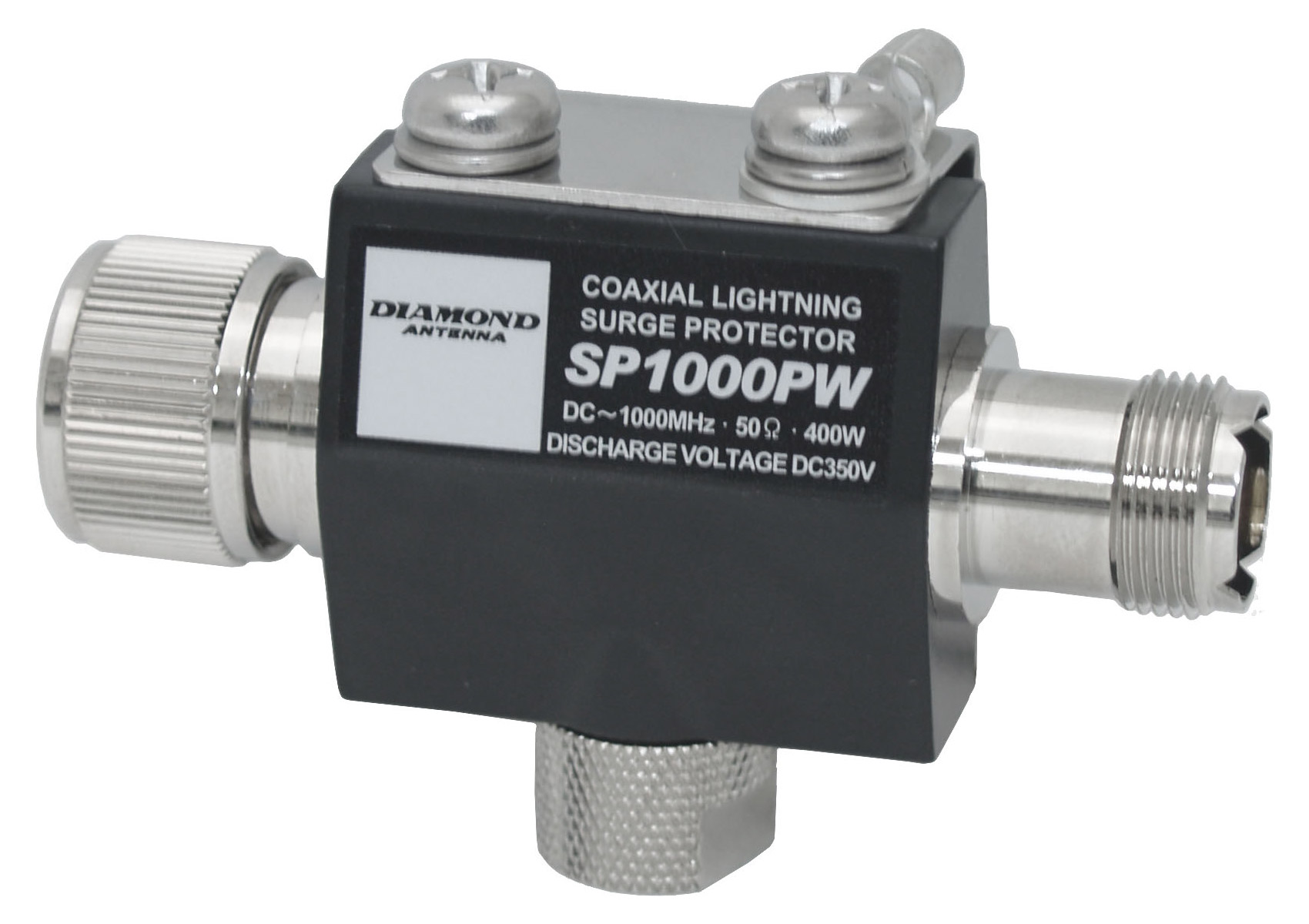

Safe-guard your expensive equipment from static electricity and lightning induced surges on 50 Ohm coax. The Lightning Surge Protector has an Ultra-fast gas discharge tube that safely shunts peak impulse current harmlessly to an independent ground. SWR less than 1.2:1.

Less than 0.3 dB insertion loss . Use up to 1000 MHz. handles 400W PEP. SP100PW does not protect against a direct lightning hit.


Specifications:

  • Frequency range: DC to 1000MHz
  • Impedance: 50ohms
  • Connectors: MJ/MP
  • VSWR: Less than 1.2:1
  • Insertion loss: Less than 0.3dB
  • Max.
  • Power rating: 400W(PEP)
  • Dimensions: 78(W)x55(H)x26(D)mm
  • Weight: 130g
