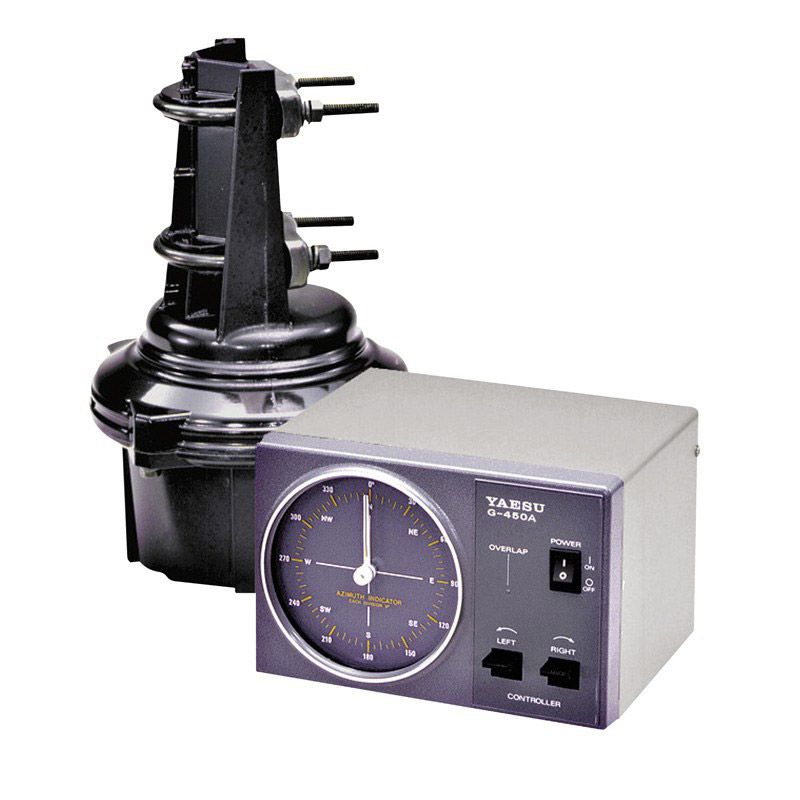

Medium-duty applications for 2m or 70cm antenna systems. Features mechanical and electrical stop. The brake construction keeps the antenna positioned, however, allows the antenna to turn in case of heavy winds. The indicator is self-calibrating after power on. Required mast clamps for mast installation: GC-038. Suggested for smaller short wave beams or medium sized 2m/70cm antennas. The rotor has 450° rotation and integrated mast brackets on top. Easy on-off cable connection, the control box features a compass meter and 450 degree display. When used in conjunction with a thrust bearing use 50 mm mast diameter.

SPECIFICATIONS

Rotation torque 58 Nm
Brake torque 294 Nm
Max. vertical torque 600 Nm
Max. vertical load 100 Kg
Rotation 450 °
Rotation time 63 sec.
Mast diameter 43-60 mm
Cable included Option
Platform mounting Yes
Rotator voltage 24 Volt
No. of control wires 5
Weight 3,0 Kg
Control unit with 360° display Yes
