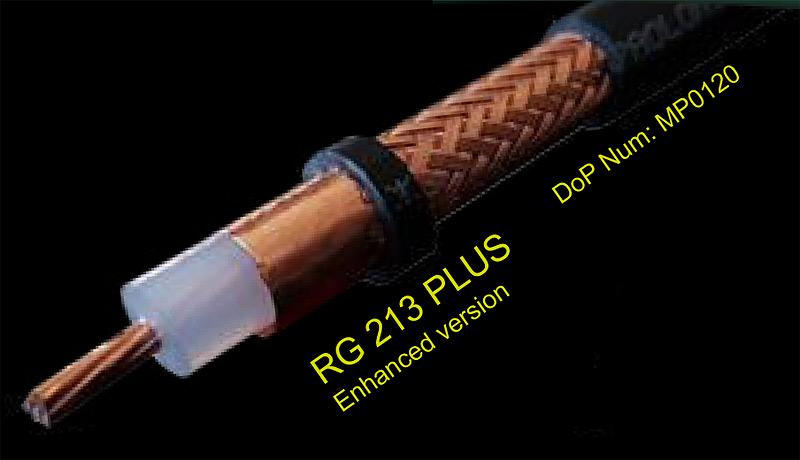

An evolution of the classic RG 213, boosted on each characteristics and far better performances.

ELECTRICAL DATA

  • Class: A++
  • Capacitance (pF/m): 101 pF/m ± 2
  • Minimum bending radius: multiple/single 120/60mm
  • Temperature: -45°C to + 70°C
  • Velocity ratio: 66%
  • Screening efficiency: MHz 100-900 > 105 dB
  • Inner conductor resistance: 5,8 Ohm/Km
  • Outer conductor resistance: 11 Ohm/Km
  • Tension test (jacket): 8 kV
  • Weight (100m): 12 Kg
  • Maximum peak power: 16.000 W

ATTENUATION  at 20°C (db/100m)

  • Mhz 1,8: 0,8
  • MHz 10: 1,7
  • MHz 28: 2,6
  • MHz 50: 3,5
  • MHz 144: 6,2
  • MHz 200: 7,4
  • MHz 430: 11,4
  • MHz 800: 16,3
  • MHz 1296: 21,8

POWER HANDLING

  • MHz 1,8: 8.372W
  • MHz 10: 4.114W
  • MHz 28: 2.667W
  • MHz 50: 2.033W
  • MHz 144: 1.152W
  • MHz 430: 628W
  • MHz 800: 439W
  • MHz 1296: 328W
