"Late Winter Warmer Special 2020" Special Cashback program from Yaesu. €120 cashback if you buy Yaesu FT-818 by the 30th of September 2020 and mail this form completed back to Yaesu UK together with your dealer invoive, up to 30 days after the purchase.

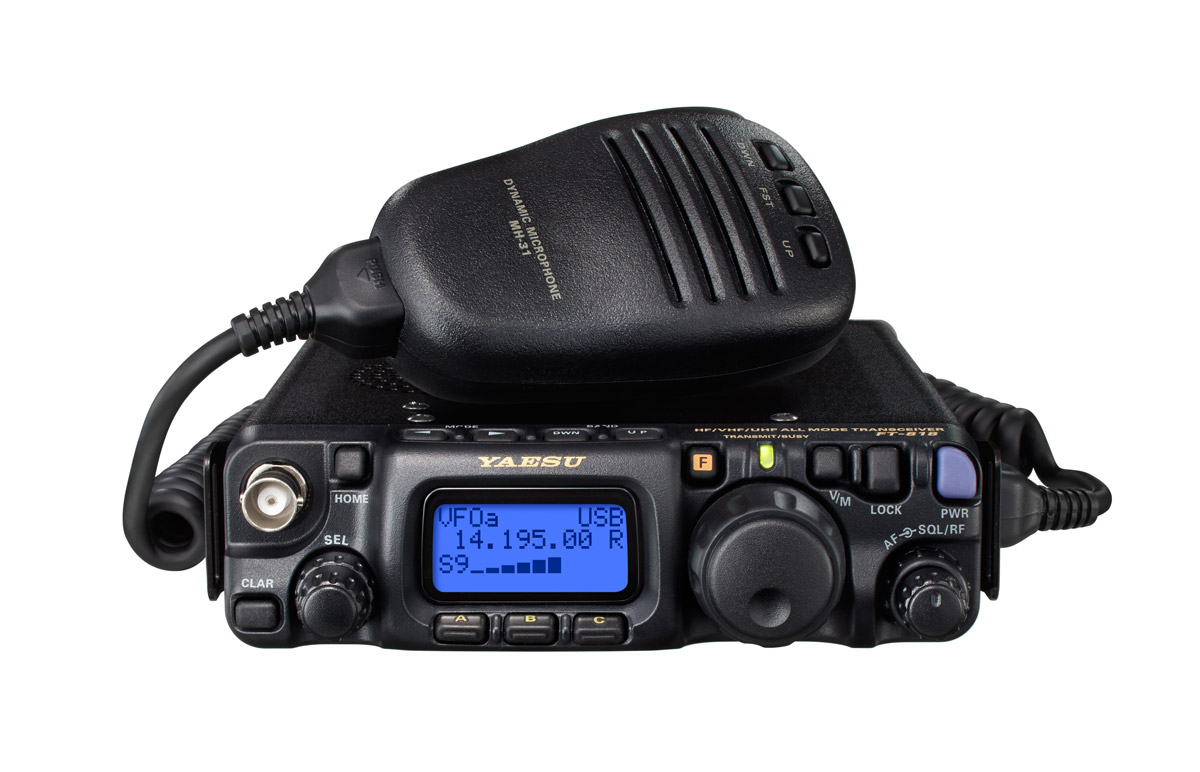

The new FT-818 incorporates all the many basic and attractive features of the ever-popular FT-817ND while providing upgrades desired by many existing owners. The FT-818 provides 6W of solid output power with an external DC power source. The supplied Ni-MH battery pack (SBR-32MH) has been upgraded to now provide larger battery capacity - 9.6v/ 1900mAh. The recent launch of several new satellites is a certain indicator that the large global community of satellite enthusiast are going to be very delighted to learn that the FT-818 includes a Built-in TCXO-9 oscillator that gives the FT-818 fantastic frequency stability (±0.5ppm).
FUNCTIONS
- TX Frequency Coverage: 160 - 10 Meters, 50 MHz, 144 MHz, 430-450 MHz, plus 60m band.
- RX Frequency Coverage: 100 kHz - 56 MHz; 76 - 154 MHz; 420 - 470 MHz.
- Power Output: 6 Watts SSB/CW/FM with 13.8V External DC; 2 Watts AM Carrier. 2.5 Watts SSB/CW/FM with 9.6V Ni-Cd Pack or 8 "AA" batteries (AM: 0.7 Watt), Up to 5 Watts SSB/CW/FM power (max.) programmable via Menu on Ni-Cd/AA cells.
- Operating Modes: USB, LSB, CW, AM, FM, W-FM, Digital (AFSK), Packet (1200/9600 FM).
- Digital Modes: RTTY, PSK31-U, PSK31-L, and User defined USB/LSB (SSTV, Pactor, etc.).
- Case Size: 5.31 x 1.5 x 6.5 inches (WHD)
- Weight: 2.6 lbs. (with Alkalines and Antenna, w/o Mic.).
- Two-Color LCD Multi-function Display (Blue/Amber).
- Bar-Graph Metering of Power Output, ALC, SWR, Modulation.
- Optional Narrow CW and SSB Filters.
- AGC Fast-Slow-Auto-Off Selection.
- RF Gain/Squelch Control.
- Built-in Noise Blanker.
- Built-in TCXO-9 High Stability.
- Transmit coverage of the 60 meter band
- IPO (Intercept Point Optimization) and ATT (Receiver Front End Attenuator).
- Dual VFOs, Split Capability, IF Shift, and R.I.T. ("Clarifier").
- Wide/Narrow FM Selection.
- AM Aircraft Reception.
- Dedicated SSB-based Digital Mode for PSK31 on USB/LSB, AFSK RTTY, etc.
- Built-in CW Electronic Keyer and Semi-Break-In (down to 10 ms delay) Capability.
- Adjustable CW Pitch; CW Paddle Normal/Reverse Connection Selection.
- Built-in VOX.
- Automatic Repeater Shift.
- Built-in CTCSS and DCS.
- ARTS™ (Auto-Range Transponder System).
- Smart Search™ Automatic Memory Loading System.
- Spectrum Scope.
- Front and Rear Panel Antenna Connectors (BNC on Front; M [SO-239] on Back).
- 200 Regular Memories, plus Home Channels and Band-Limit (PMS) Memories.
- Alpha-Numeric Labeling of Memory Channels.
- Automatic Power-Off (APO) and Tx Time-Out Timer (TOT) Features.
- Rear Panel Data, Accessory and Key jacks
- CAT System Computer Control Capability (4800/9600/38400 bps); Cloning Capability.
SUPPLIED ACCESSORIES:
- Hand Microphone(MH-31A8J)
- Battery (SBR-32 9.6V 1900mAh Ni-MH )
- Battery Case (FBA-28) (Requires 8 "AA: batteries)
- Whip Antenna for 50/144/430 MHz (YHA-63)
- DC Cable (E-DC-6)
- Shoulder Strap, Ferrite Core, Rubber Foot
- Operating Manual
- Battery Charger (PA-48)
SPECIFICATIONS
- Frequency Ranges: RX 100 kHz - 30 MHz
- 50 MHz - 54 MHz
- 76 MHz - 108 MHz
- 87.5 MHz - 108 MHz
- 430 MHz - 440 MHz
- TX 1.8 MHz - 54 MHz
- (5.2500 MHz - 5.4065 MHz) WRC-15 + UK
- 144 MHz - 146 MHz
- 430 MHz - 440 MHz (Amateur Bands only)
- Circuit Type: Double-Conversion Superheterodyne (SSB/CW/AM/FM)
- Single-Conversion Superheterodyne (WFM)
- Modulation Type: A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM), F1D(PACKET), F2D(PACKET)
- RF Power Output : 6 W (SSB/CW/FM), 2 W (AM Carrier) @13.8 V
- Memory Channels: 208
- Case Size(W x H x D): 135 x 38 x 165 mm w/o knob and connector
- Weight: 900 g (w/o Battery, Antenna and Microphone)
