Have limited space and want to install a beam antenna? Mosley mini beams is the answer for use in confined space of a beam antenna with excellent performance and durability.

The Mosley mini beams series pass largely unnoticed because they can be placed comfortably over lofts and almost every rooftop.




They are made according to the traditional quality, simplicity and strength of Mosley, the mini series are made of stainless steel, identical to that used in aircraft.

It is also ideal for portable operation in a field day etc. Antennas are color coded and assembled in a few seconds. Their performance will really surprise you if the hard chasing DX or contest giving you many years of enjoyment of your hobby.

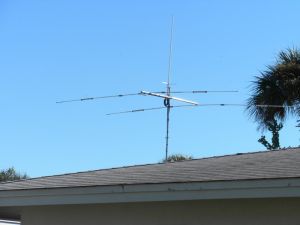

MOSLEY MINI-32A MINI BEAM
SPECIFICATIONS


Bands

10, 15 ,20

m

Max. Power

500/1000

Watt CW/SSB

SWR

2


Gain 10m

5,1

dB

Gain 15m

4,5

dB

Gain 20m

3,3

dB

Front-to-Back Ratio  10m

17

dB

Front-to-Back Ratio  15m

17

dB

Front-to-Back Ratio  20m

17

dB

Boom length

1,83

m

Element length

6

m

Turning Radius

3,14

m

Weight

3,6

Kgr

Wind Surface Area

0,23

m2
