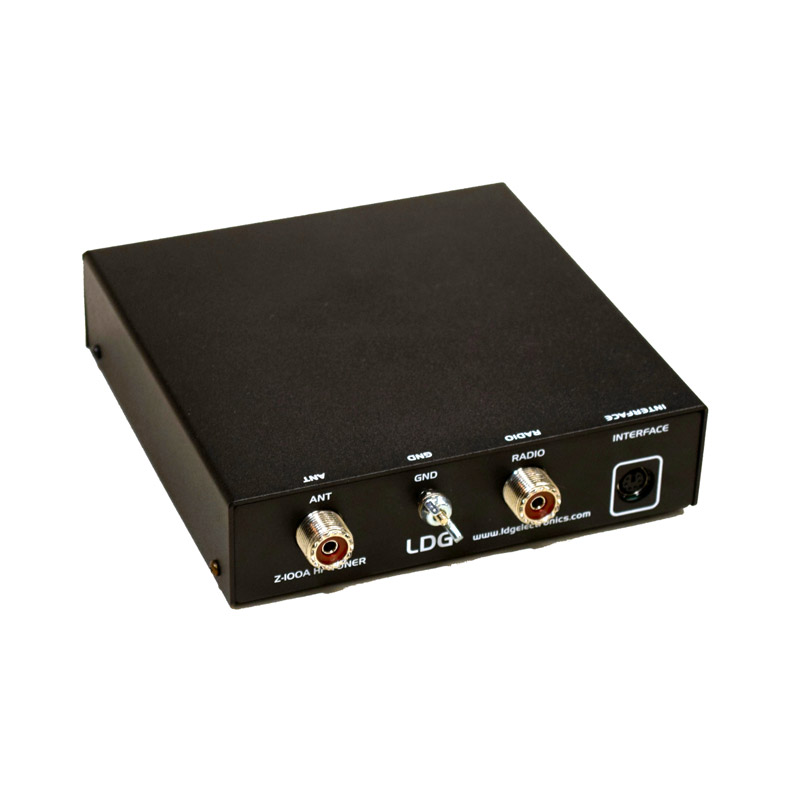

The Z-100A features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off centre fed Windom.

The Z-100A is supplied with a complete set of interface leads, giving easy integration to all the popular brands of radio. This means plug and play operation and installation could not be simpler.

The Z-100A tuner goes anywhere with and HF radio… desktop, portable, parks, islands, or tall summits.

LDG continues to set new standards for auto tuners and accessories in amateur radio service. LDG Electronics is a family-owned and operated company dedicated to bringing innovative, quality products to the amateur market. Our focus is on anticipating and meeting our customer’s needs, and providing them with world-class support.

  • 0.1 to 125 Watt SSB/CW, 30W Digital.
  • 2000 memories for instantaneous band changing.
  • Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune.
  • 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
  • Tunes 4 to 800 ohm loads (16 to 150 on 6M)
  • For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna.
  • Includes Icom interface cable. Ready to use out of the box.
  • Small Size Enclosure: 6.5″ L x 6.5″ W x 1.25″ H.
  • Weight: 1.5 pounds.

The Z-100A will work with the following radios with the supplied Interface leads

IC-115  lead  for Yaesu Ftdx101, FTdx3000

IC-108  lead for Yaesu Ft100, FT857, FT897, FT-891, FT991A

IC109  lead for Yaesu Ft450, FT950, FT1200, Ftdx10

IC-105  lead for DX77, SR8, SR9

IC-107  - Elecraft included with Z-100A

IC-100 Lead for most Icom radios - partial list IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants).
