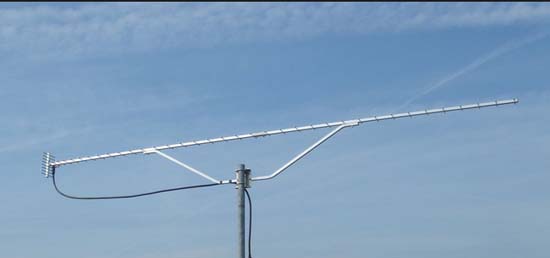

The new design "SHF 2344" is the 'little brother' of the 5 m version and is quite a 'hummer' with its 3 m length. The antenna has a high bandwidth and may be used just as well for ATV operation. Of course, this antenna is supplied fully assembled; the awkward manual mounting process has been replaced by the assembly robots.

Technical Specifications

Frequency

1240 ~ 1300 MHz

No of elements

44

Gain ISO

20,3 dB

Gain dBD

18,1dBD

Max power

500W

Length

3m

Electric length

13λ

HPBW

16,5o

Side lobs

-17dB

Front/Back ratio

26dB

Stacking distance

751mm

Typical SWR

1,2

Wind load120 Km/h

86 N

Max. mast diameter

52mm

Transport length

1.6 m

Dipole connector

N-type
