Nevada Kevlar 3.2mm HD 5 Kw high power antenna  wire

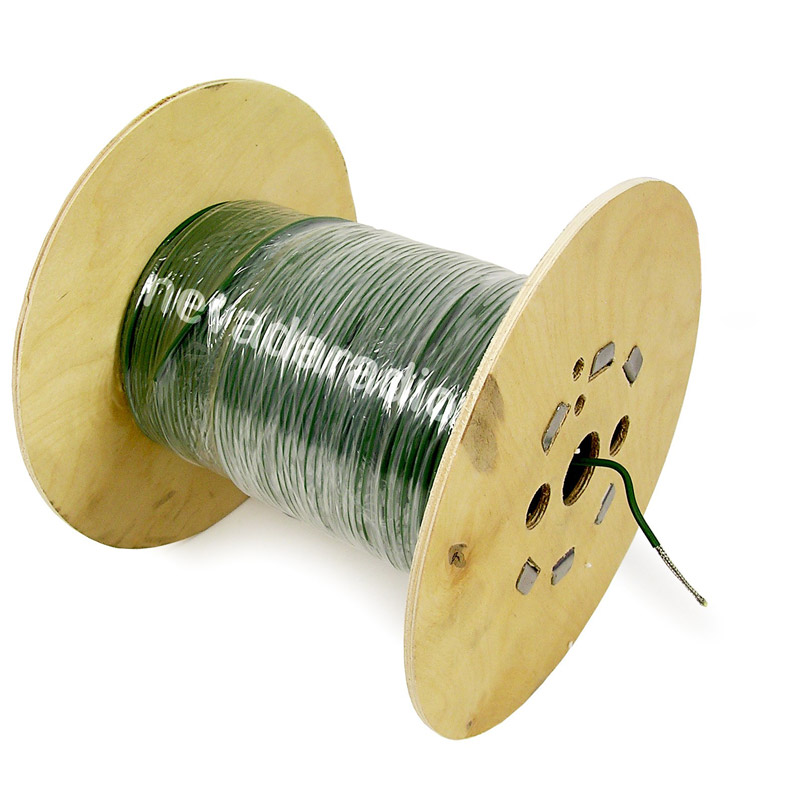

NEW - High Power -  Military style Kevlar antenna Wire in Chrome Green colour (3.2 mm outer diameter), priced here by the 100 metre drum

Simply the best type of wire to use for all of your antenna projects. This Kevlar is light and amazingly strong, and finished in a discreet chrome green colour for minimum visual impact !

  • Breaking strain in excess of 150Kg
  • Conductor - tinned copper wire braid - 16/8/0.10 mm BS EN 13602:2002 Min 95% Optical Coverage
  • Jacket PVC Type 4 C54/45   Minimum 0.50mm RTI RAL 6020 Chrome Green
  • Electrical Characteristics
  • Nominal Conductor Resistance 20.20Ω /KM @ 20°C
  • Minimum Insulation Resistance >500 MΩ/KM @ 1000V
  • Mechanical Characteristics
  • Centre made of Continuous Filament
  • Aramid & Polyester High Tenacity yarn
  • 10,080 dTtex + 6,600 dTex
  • Maximum Operating Temp 100°C
  • Minimum Cold Bend Temp -60°C
  • Minimum Cold Flex Temp -40°C
  • Minimum Break Load 90 KGF
  • Minimum Break Force 0.8826 kN
  • Maximum Elongation @ 20°C   2% @ 660 N
  • Minimum Recommended Bend Radius  5.60 mm
  • Nominal Weight  22 KG/KM
