WITH POWER RANGE UP TO 3KW

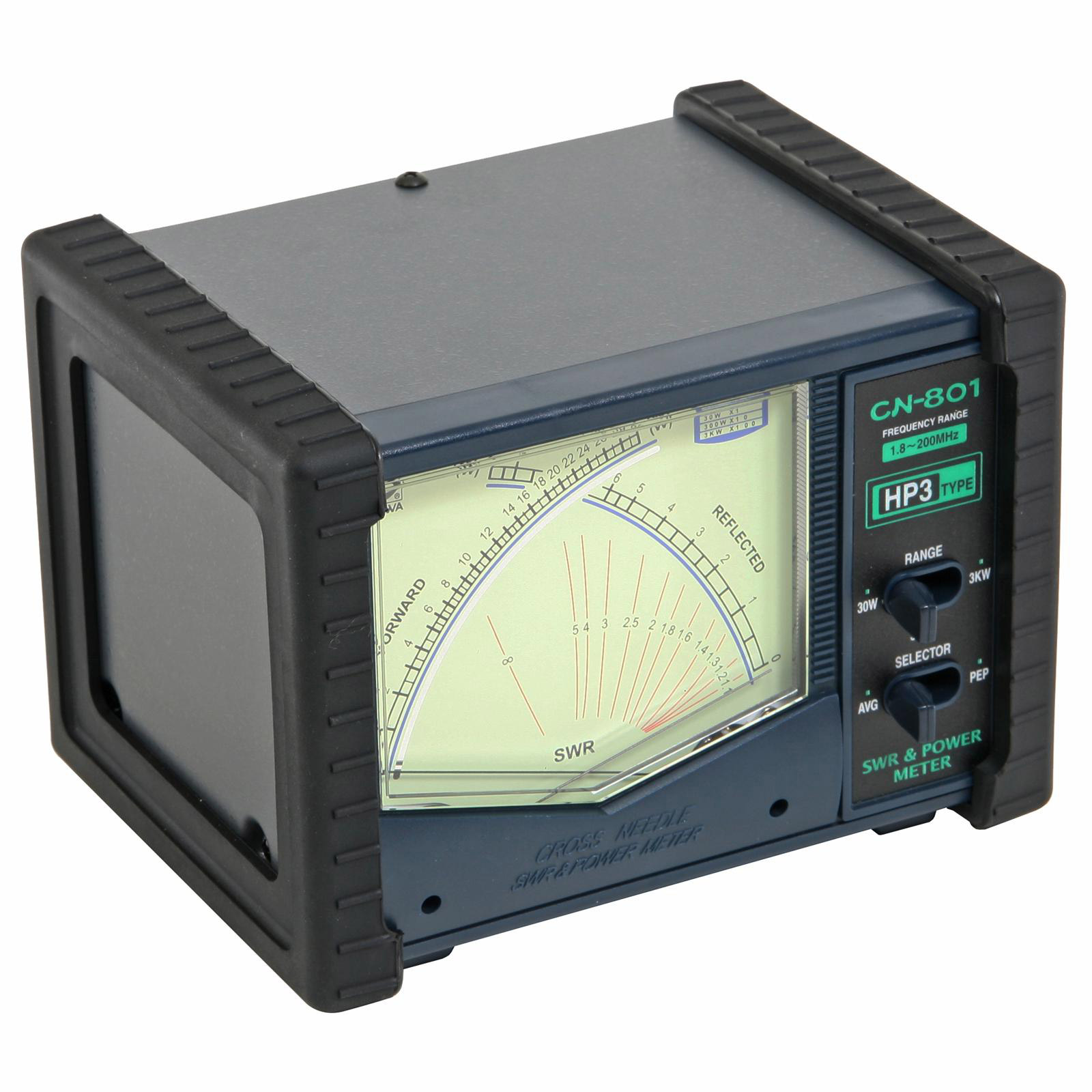

A professional grade cross needle power/SWR meter that also measures P.E.P. ( Peak Envelope Power ) for SSB operation.

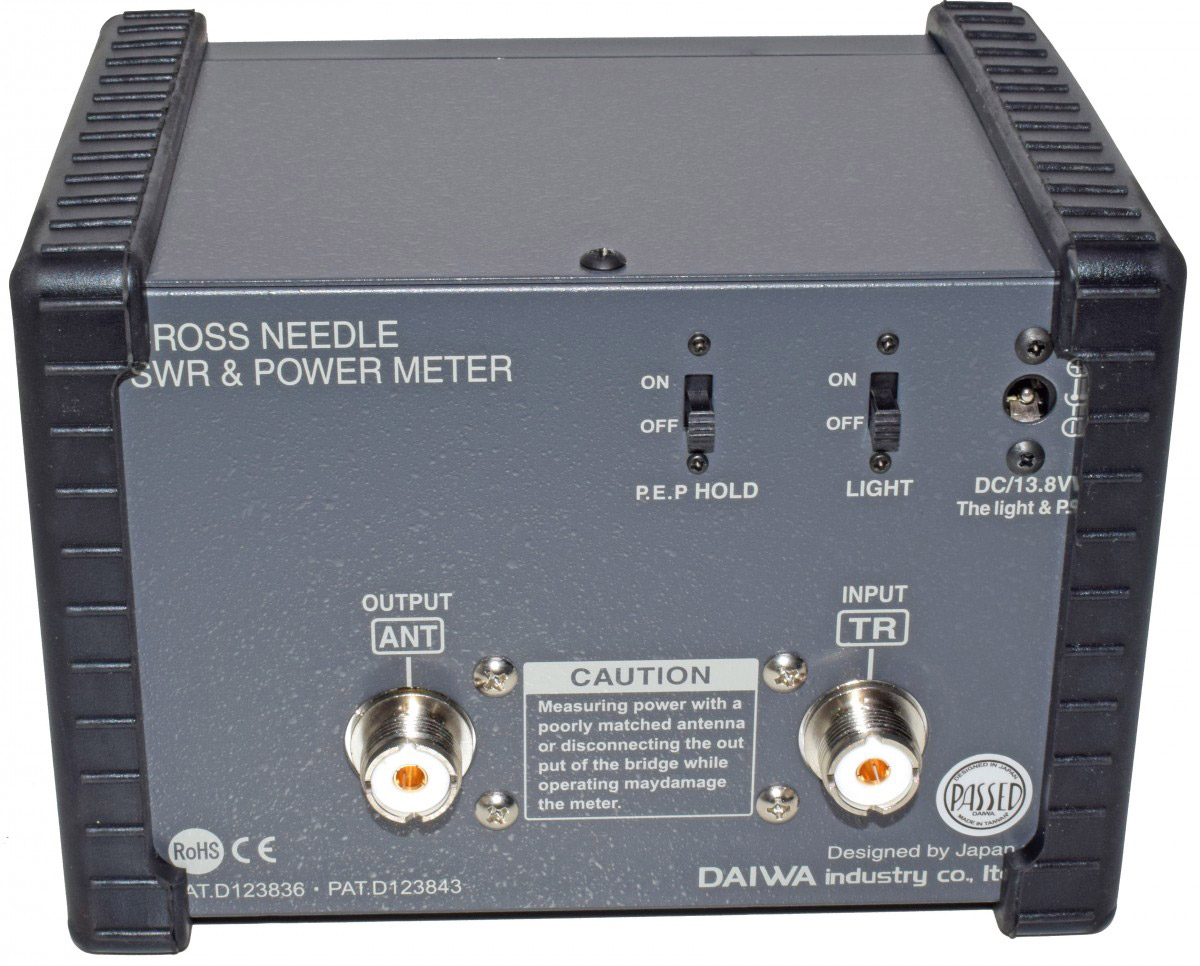

An extra large meter allows accurate readings of forward & reverse power, with SWR read at the dual dual meter crossover point.This is the latest version of this meter and is now fitted with 2 x switches on rear panel to operate 1) PEP function and 2) display illumination..
- Frequency 1.8~200MHz
- Power range 30/300/3kw
- Tolerance +/-10%(at FULL SCALE)
- SWR measurement 1:1~1:8
- SWR detection sensitivity 5W
- Impedance 50Ohms
- Connectors SO-239
- DC Power supply DC 13.8V(70mA)
- Dimensions 157(W)x112(H)x116(D)mm
- Weight 1kg
DOWNLOAD THE MANUAL
