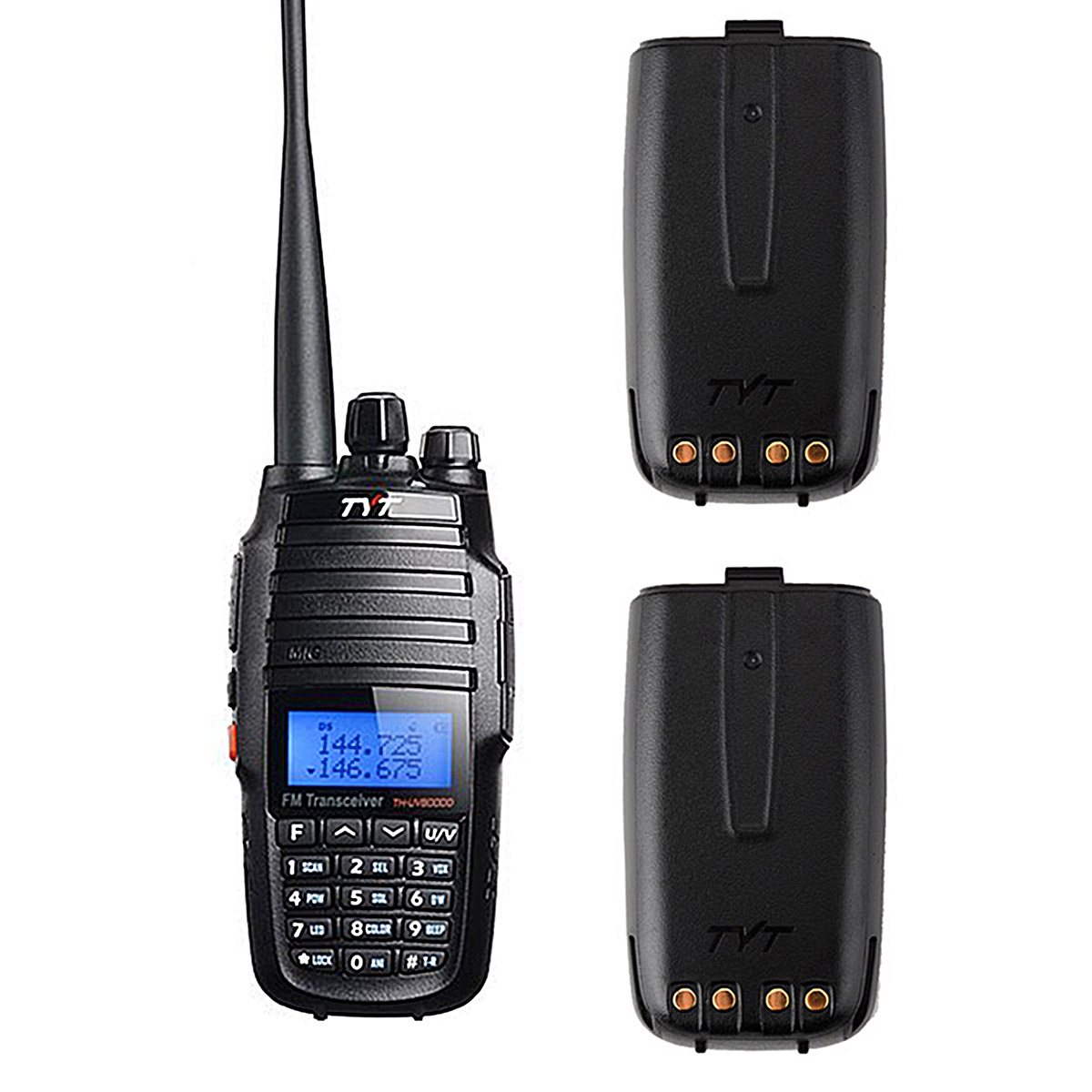

New released by TYT, Dual band, Dual display and Dual standby, you get up to 128*2 Channels to store.
Comes with High Gain Antenna and 2 large capacity batteries of 3600mAh, quite suitable for outdoor activities.
Ultra high output power UP to 10W.
VOX transmitting, TOT, 1750Hz tone, CTCSS/DCS scanning, , FM radio function, can store up 25Radio channels, Reverse frequency function.
DTMF encoding and decoding, Channe spacing selectable(25/12.5kHz), Remote Kill/Stun/Activate/Revive, Tri-color background light selectable, Cross-band repeater function.

     General

  • Frequency Range 136-174MHz/400-470MHz

  • Frequency Stability 2.5PPm

  • Operating Voltage DC 7.2V (Rechargeable Li-ion Battery)

  • Channel No 128*2

  • Antenna High Gain Antenna

  • Antenna Impedance 50Ω

  • Mode of Operation Simplex or Semi-duplex

  • Battery Capacity 3600mAh



      Transmitter

  • Output Power ≤10w ≥5w

  • Modulation Mode 16kΦF3E/11kΦF3E

  • Maximum Deviation <5KHz/<2.5KHz

  • Adjacent Ch.power ≤-65dB/≤-60dB

  • Spurious Radiation <7μW

  • Pre-emphasis Characteristics 6dB

  • Current ≤2.8A(10W)≤1.8A(5W)

  • CTCSS/DCS Deviation 0.55KHz±0.15Khz 0.4KHz±0.1KHz

  • Intermediation Sensitivity 8-12mV

  • Intermediation Distortion <5%



      Receiver

  • RF Sensitivity -122dBm(12db SINAD)

  • Audio Power >0.5W

  • Audio Distortion <10%

  • Blocking *85dB

  • Intermediation *60dB *55dB

  • Selectivity *65dB *60dB

  • Spurious Rejection *65dB
