WITH FREE USB PROGRAMMING CABLE

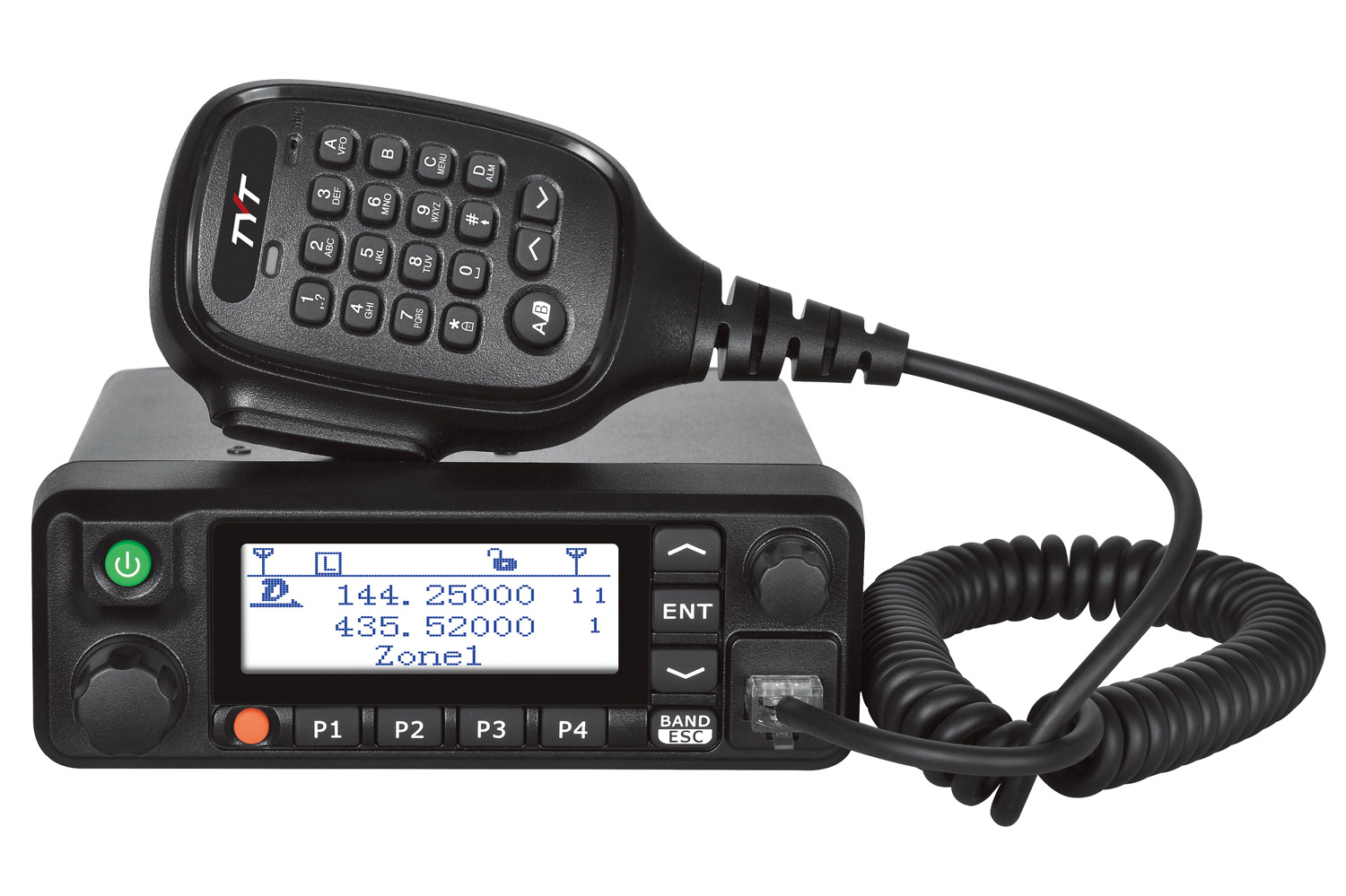

Now you can go digital on the road with the TYT MD-9600 DMR Digital Mobile Two Way Radio! The MD-9600 gives you the crystal clear, noise-free audio of over-the-air digital communications in your vehicle, full analog transceiver capabilities, and bundles it all together at a price you can afford!

The MD-9600 supports analog and digital modes so you can enjoy the best of both. It provides dual band support, operating on both 430-440MHz UHF frequencies and 144-146MHz VHF at up to 50 watts VHF and 45 watts UHF, using Time-Division Multiple-Access (TDMA) digital technology. This digital mobile radio is also compatible with Motorola TRBO and DMR Tier II.

The MD 9600 offers 250 zones with 16 channels for each zone. It has built-in CTCSS/DCS, channel scan, priority scan, short text message features, draft message edit, contacts check and edit, and encryption. It also has remote stun/kill and activate.

As for calling features, the MD-9600 has them, including Private Call, Group Call and All Call. It also includes Lone worker mode, power save mode, low power alarm, an emergency alarm and VOX capability. Plus, it's PC programmable and firmware upgradeable to boot, providing the maximum flexibility and versatility to rival any other digital mobile radio on the market!

The TYT MD-9600 gives you a LCD display with clear, sharp text for an easy read from your dash or console. It also gives you programmable function keys on the console and a hand mic with programmable keys, two built-in LEDs and a DTMF keypad and for full access to its menu of powerful digital and analog features. No doubt about it, the MD-9600 gives you all the value of a premium digital mobile radio at an amazingly low analog price!



        TYT MD-9600 Features

  • 1000 Channels
  • 144-146MHz VHF Frequencies
  • 430-440MHz UHF Frequencies
  • Repeater Capable
  • AMBE+2™ Digital Vocoder
  • Private Call/Group Call/All Call
  • 50W/45W V/U Output Power
  • Hi/Low Power Selectable
  • Emergency Alarm
  • Channel Scan
  • Priority Scan
  • Talk Around
  • Lighted LED Keypad
  • Text Messaging
  • LED Status Light On Hand Mic
  • Low Battery Alert
  • Battery Saver
  • Timeout Timer
  • VOX
  • Audible Button Beeps
  • Voice Prompts
  • Cloning Capable
  • PC Programmable (Optional Software and Cable Required)
  • Programmable Multifunction Key
  • Digital/Analog Combined
  • DMR
  • Lone Worker Mode
  • Stun/Kill/Revive

Technical specifications TYT MD-9600

  MD-9600
General
Frequency Range VHF:136-174MHZ or
UHF:400-480MHz
Channel 1000 Channels
PLL Channel spacing 6.25/25/12.5KHZ
Voltage rating DC 13.8v
Operating temperature -30℃~+60℃
Storage temperature -30℃~+85℃
Size 143*50*175mm
Compatible with American Military standard (MIL-STD-810C/D/E)
Transmitter
RF Power Output L:25W H:50W(VHF)
L:25W H:45W(UHF)
FM hum and noise -40dB @ 12.5KHZ
-45dB @ 25 KHZ
Modulation limited +/-2.5KHZ@12.5KHZ
+/-5.0KHZ@25KHZ
Conducted/radiated emission -36dBm<1GHz
-30dBm>1GHz<4GHz
Adjacent channel power -60dB @ 12.5KHZ
-65B @ 25 KHZ
Audio response +1dB~-3dB
Audio distortio  3%
FM modulation 12.5KHZ:11 K0F3E
25KHZ:16 K0F3E
4FSK digital modulation 12.5KHZ(data only):7K60FD
12.5KHZ(data+audio):7K60FXE
Digital protocol ETSITS102361-1,-2,-3
Digital Vocoder type AMBE2+
Digital agreement DMR
 Receiver
Frequency stability (-20℃+60℃,+25℃) +/-1.0ppm
Digital sensibility 0.3 uV/-117.4dBm(BER 5%)
0.7 uV/-110dBm(BER 1%)
Analog sensibility 0.35uV/-116dBm(20dB SINAD)
0.22 uV/-120dBm(20dB SINAD)
Rated audio 5w
Adjacent channel selectivity TIA603C: 60dB @ 12.5KHZ
ETSI:  60dB @ 12.5KHZ
Intermodulation TIA603C: 65dB
ETSI:  65dB
Co-channel Rejection 12dB @ 12.5KHZ
Spurious rejection TIA603C: 70dB
ETSI:  70dB
Audio distortion @rated audio ≤3%
FM hum and noise -40dB @ 12.5KHZ
-45dB @ 25 KHZ
Audio response +1dB~-3dB
Spurious emission <-57dBm@<1 GHZ
>-47dBm@>1 GHZ
Block 84dB
