Take RF testing to the next level with the new MFJ-225! All the basic analyzer functions you`ve come to depend on plus a host of advanced features like builtin LCD graphics, two-port VNA measurement, PC-Interface using IG-miniVNA freeware, precise DDS frequency control, self-calibrating . . . easy-to-use!
Two Analyzers in One
Out in the field, MFJ-225 is a compact completely self-contained handheld analyzer. On the bench it becomes a full-fledged two-port (S21) desktop machine when teamed up with your PC. Using powerful IG-miniVNA freeware, you`ll run detailed data analysis and then print out stunning color-graphic plots to document your work!
Seeing is Believing
Get a big picture every time with MFJ-225`s built-in back-lighted 3-inch LCD graphic display. Make fine circuit adjustments using full-screen easy-to-view SWR bar graph, capture vivid swept displays for SWR, impedance, return loss, phase angle, more! Operation is simple, you can adjust the center frequency, tuning step, and sweep width instantly while viewing your plot, literally shaping it before your eyes.
Continuous HF-VHF Coverage
Tunes from 1.5 MHz to 179.9 MHz with rock-solid stability and no gaps. That`s because the MFJ-225`s VFO is a state of the art programmable DDS (direct digital
synthesis) generator with pin-point 1-kHz frequency resolution. DDS control means no mechanical band switches or tuning elements, just a reliable velvet-smooth optical encoder to glide across the spectrum.
The MFJ-225 simultaneously compiles and displays all important parameters you
need on a single screen, giving you a wider range of results at a glance. You`ll work faster and smarter without the inconvenience of scrolling through menus or making tedious conversions to get your data.
What the MFJ-225 Measures:
SWR (1:1 to 9.9:1)
Complex Impedance (R+jX)
Impedance Magnitude (Z)
Return Loss (RL, 0-30dB)
Cable Length (0.5-45m)
Cable Loss (0-30dB)
In addition to traditional single-port (S11) reflected-power measurements, MFJ

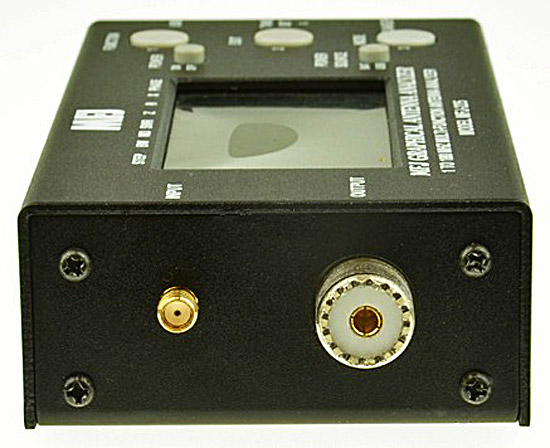

features an invaluable advantage of making two-port (S21) forward-power measurements, essential for optimizing filters, diplexers,matching networks, etc. It bridges the gap between a simple scalar analyzer and true vector-analysis performance.
Advanced features conjure visions of greater complexity and more buttons to
push . . . not true for MFJ-225! The graphic display is "advanced" because it places more information at your fingertips without needless scrolling and searching. Also, the layout is unique with three large soft-touch selector buttons located on the front panel next to the screen and a large side-mounted frequency control knob conveniently positioned for your right hand. Everything is located where it needs to be for intuitive operating and unobstructed screen view!
Easy To Power
MFJ-225 can be powered by four AAA alkaline batteries or four AAA Ni-MH rechargeable batteries (batteries not incl.). Optional MFJ-1312D, or any external 12 VDC power is required for the built in recharging circuit with charge indicator LED. LED will light while charging and turn off when cycle is completed. On the bench, power it through the USB power port using any USB power source. Optional USB cable,MFJ-5430
In order to maintain out-of-the box accuracy, all analyzers require periodic calibration checks -- a potentially time-consuming operation that may require special RF loads and step-by-step procedures. However, the MFJ-225 uses built-in firmware to perform its entire calibration routine in less than a second! Simply initiate the "command and you`re done!
