Designed for a variety of applications it has a big 30amp capacity and is also  ideal for powering most HF transceivers where protection, reliability and immunity to RF are important. This is a high quality variable voltage power supply utilising galvanised steel case, precision ammeter and voltmeter monitoring.

Thermostatically controlled fan, H/D screw terminals and convenient snap in terminals. The supply also has short circuit protection and has an overcurrent warning indicator.

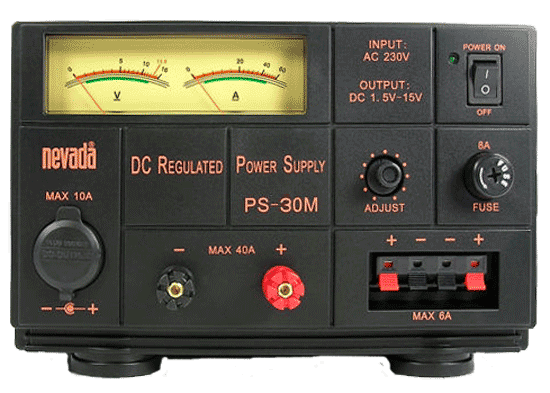

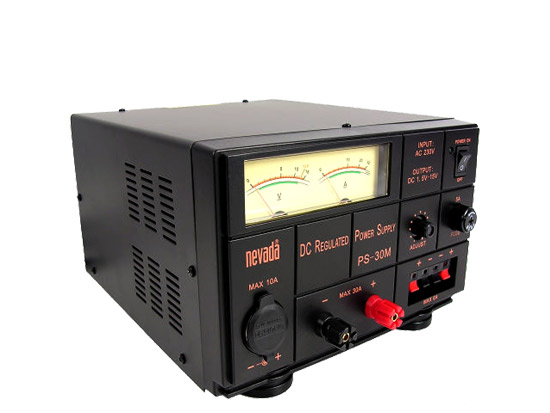

  • Nevada PS-30M: Variable Voltage Power Supply
  • Input voltage: 220/240V AC
  • Output voltage: 3-15V DC adjustable
  • Current: 25/30A Max.
  • Noise and ripple: 10mV RMS
  • Thermostatically controlled fan
  • Extra Large Dual Meters
  • Volt and current metering
  • Overcurrent warning indication
  • Short circuit protection
  • Size: 230 x 150 x 270mm WHD
  • Weight: 8.58kg
