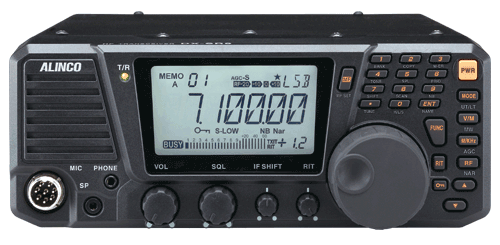

Alinco, a world leader in communications has developed a compact, dependable and easy-to-operate HF transceiver. The DX-SR8 is an intuitive design achievement, from its detachable front panel and front-facing speaker to its logically laid out controls. The DX-SR8 is engineered to be a quality transceiver, able to endure heavy-duty cycles and harsh operating environments. There are many convenient features and a variety of setup parameters that will enhance its performance under demanding operating conditions. Alinco delivers high quality and superior value in the DX-SR8!




        Features of DX-SR8T/E

  • Coverage of All short-wave and HF amateur bands
    (DX-SR8T North American /DX-SR8E European and other regions)

    Covers the 160m to 10m amateur bands including 5.3MHz (T-model only) in SSB, CW, AM and FM modes. Output power is 100W SSB/CW and FM, 40W in AM with low and super-low power settings for QRP operation. In addition, the general coverage receiver covers 135KHz to 30MHz in all modes.

  • Detachable front control panel
    Completely detachable front control panel with large LCD display lets you install the radio with greater flexibility whether in your car, boat or your shack. (Optional EDS-17 cable required)

  • Direct DATA entry via the key pads
    While the main dial tunes at the default 10Hz/resolution (adjustable in set mode), the numerical key pads can be used for fast direct frequency input, band selection and more.

  • Fight QRM with these STANDARD features
    Reject unwanted signals with the IF shift. Choose a narrow filter, a noise-blanker or use RIT/TXIT to stay out of QRM.

  • Emphasis on CW Operation
    An electronic keyer unit is standard. You can receive CW using either upper or lower side of the carrier frequency. Choice of side tone pitch, FULL (QSK), Semi or Auto break-in, split, narrow filter, AGC and RF gain.

  • World-class transmit audio quality
    A dynamic microphone (T/E models) and a speech compressor come standard for sharp, clear and powerful transmitting audio.

  • Enhanced scan modes
    A variety of scan modes are available including Priority, Search, Busy, Timed, Memory and Programmed search. Timed scan setting does not require squelch-mute so you are able to monitor data-modes and broadcasts simultaneously with memory search scan.

  • Additional convenient features include
    RF Attenuator and Pre-amplifier selectable in 4 steps, / 3 TX power output levels with a Super-Low setting (QRP 0.1W~2W variable) / Dual VFO / 600ch memories in 3 banks / Connections for Auto-antenna tuner and Liner amplifier ALC output / Fully independent AF level, squelch, RIT and IF shift knobs / Dial lock and key lock / TX-RX lamp / Alphanumeric display / Auto-power-off / CTCSS encode for 10m FM repeater accesses / Microphone, Headphone and External speaker jacks on the front panel / Large, temperature-controlled internal cooling fan with anti-overheat output power limiter/ High-SWR protectioncand more!

        Standard accessories

  • EMS-64 (SR8E/SR8T: Dynamic)

  • DC cable

  • Microphone hanger EBC-7

        Optional accessories

  • EDX-2 automatic long-wire antenna tuner

  • EDS-17 Front control remote kit (5m cable, front panel bracket, unit cover and hardware)

  • EMS-14 Desktop microphone

  • DM330/340MV series DC power supplies


    Specifications:


    Genaral  DX-SR8 ALL MODELS

    Operating mode

    J3E (USB, LSB), A3E (AM), A1A (CW), F3E (FM)

    Antenna impedance

    50ohm unbalanced

    Frequency stability

    +/-1ppm

    Power requirement

    13.8V DC +/-15% (11.7 to 15.8V DC)

    Ground method

    Negative ground

    Current drain

    Receiver: 1.0A(max.)  0.7A(Squelched)
    Transmit: 20A

    Operating temperature

    -10digC to 60digC (+14digF to +140digF)

    Dimentions

    240(w) x 94(h) x 255(d)mm (Projections not included)
    (9.45"(w) x 3.7"(h) x 10"(d)
    240(w) x 100(h) x 293(d)mm
    (9.45"(w) x 3.94"(h) x 11.54"(d)

    Weight

    Approx. 4.1kg (144.6oz)

    Dimensions (w/o projection)

    142(W) x 40(H) x 174(D) mm
    5.59"(W) x 1.57"(H) x 6.85"(D)

    Weight

    Approx. 1.0Kg (35.3oz)

    Transmitter

    Power Output

    SSB, CW, FM: 100W(Hi) Approx. 10W (Low) Approx. 1W (S-Low)
    AM: 40W(Hi) Approx. 4W (Low) Approx. 0.4W (S-Low)

    Modulation system

    SSB: Balanced modulation
    AM: Low power modulation
    FM: Reactance modulation

    Spurious emission

    Less than -50dB (Less than -45dB in 30m band)

    Carrier suppression

    More than 40dB

    Unwanted sideband

    More than 50dB(1KHz)

    Maximum FM deviation

    +/-2.5KHz

    Receiver

    Receive circuitry

    Double conversion superheterodyne

    Sensitivity

    SSB: (0.15 to 1.8MHz)   0dBu(1uV)
    CW: (1.8 to 30MHz)   -12dBu(0.25uV)
    AM: (0.15 to 1.8MHz)   +20dBu(10uV)
    AM: (1.8 to 30MHz)   +6dBu(2uV)
    FM: (28 to 30MHz)   -6dBu(0.5uV)

    Intermediate frequency

    1st 71.75MHz, 2nd 455KHz

    Selectivity

    SSB, CW, AM(narrow): 2.4KHz/-6dB  4.5KHz/-60dB
    AM, FM: 6KHz/-6dB  18KHz/-60dB
    -6dB: 6KHz or more
    -60dB: 16KHz or less (NFM)

    Spurious and image rejection ratio

    More than 70dB

    Audio output power

    More than 2.0W(8ohm 10%THD)

    RIT variable range

    +/-1.2KHz



    DX-SR8T
    (USA/Canadian Amateur)

    DX-SR8E
    (European and other regions Amateur)

    Microphone impedance

    300ohm

    Transmit Frequency coverage

    160m band
    (1.8M)

    1.80000 - 1.99999MHz

    1.80000 - 1.99999MHz

    80m band
    (3.5M)

    3.50000 - 3.99999MHz

    3.40000 - 3.99999MHz

    *60m band
    (5.3M)

    5.33050MHz
    5.34650MHz
    5.36650MHz
    5.37150MHz
    5.40350MHz

    -

    40m band
    (7M)

    7.00000 - 7.29999MHz

    6.90000 - 7.49999MHz

    30m band
    (10M)

    10.10000 - 10.14999MHz

    9.90000 - 10.49999MHz

    20m band
    (14M)

    14.00000 - 14.34999MHz

    13.90000 - 14.49999MHz

    17m band
    (18M)

    18.06800 - 18.16799MHz

    17.90000 - 18.49999MHz

    15m band
    (21M)

    21.00000 - 21.44999MHz

    20.90000 - 21.49999MHz

    12m band
    (24M)

    24.89000 - 24.98999MHz

    24.40000 - 25.09999MHz

    10m band
    (28M)

    28.00000 - 29.69999MHz

    28.00000 - 29.99999MHz
