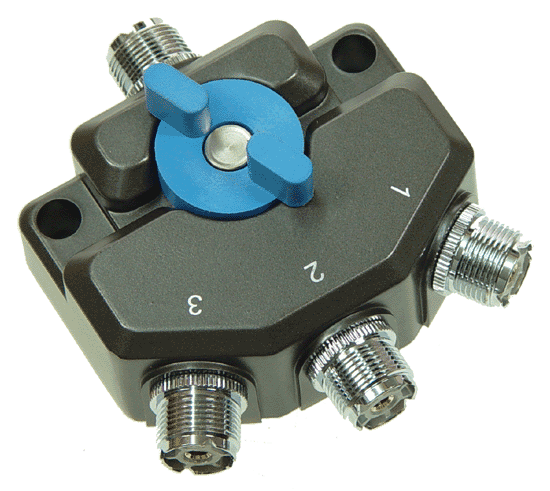

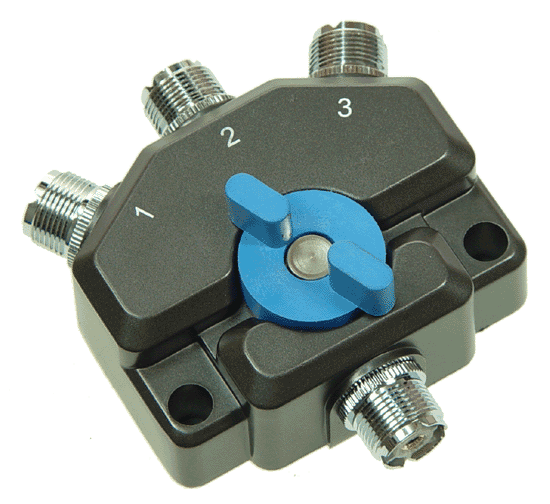

4 Way antenna switch with SO-239 connectors.
Technical Specifications
-
Frequency range: DC-800MHz
-
Connectors: Input 1 SO-239, output 3 SO-239.
-
Power Range: DC-30MHz 1.5KW, 30MHz-200MHz 1KW, 200MHz-500MHz 500W, 500MHz-1000MHz 250W.
-
Insertion Loss: DC-500MHZ <=0.05db, 500MHz-1000MHz <=0.1db.
-
Output isolation: DC-500MHz >=70db, 500MHz-1000MHz >=60db.
-
VSWR: DC-500MHz <=1.15, 500MHz-1000MHz <=1.25.
